AMUR-PCI-A-18

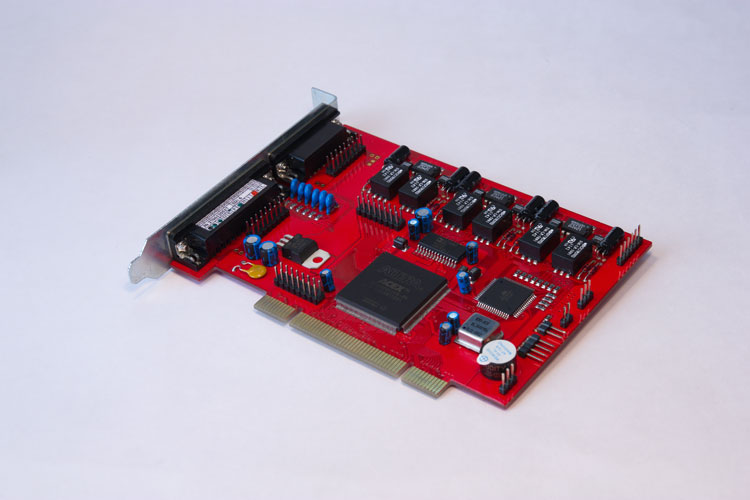

Многоканальный регистратор «AMUR-PCI-A-18»

Purpose:

Multichannel recorder «AMUR-PCI-A-18" - a hardware and software system for PC-based, designed for high-quality recording, storage and playback of analog audio information. The sources of information can be telephone or any other communication channels or analog sensors. Complex is able to record up to 18 channels simultaneously. The recorder can be delivered independently or be part of (as a subsystem) multichannel automatic recording devices «AMUR».



Order    Download



Structure



The recorder can be delivered independently or to be a part (as a subsystem) of the multichannel automatic audio recorder «AMUR». The structure of the registrar includes PCI printed-circuit board with the software (CD-ROM). On request of the customer we choose the personal computer (PC) on which the few/multichannel recorder is established. The Data recording is made on a personal computer hard disk. There is a low profile variant of a PCI printed-circuit board with number of channels up to 8. It is AMUR-PCI-A-08-LP (for installation into 2U and Slim cases)

Specifications:



Quantity of channels on the printed-circuit board.
2-18 channels per one printed-circuit-board (The quantity of printed-circuit-boards in one system block is limited by the quantity of PCI.
Type of trunk:
PCI
Record channels have the universal galvanic isolation between that makes it possible to connect any sources of signals with program presetting.

Recorded and reproduced frequency band, Hz, at base digitization frequencies, kHz:
8000Hz…..…………от 200Hz до 3400Hz
16000Hz…..……….от 200Hz до 7600Hz
32000Hz…..……….от 200Hz до 14200Hz
Recording density without compression for frequencies of digitization.
8,0kHz16bit<=57,6 Mbyte/h per a channel
Program switched sensitivity values of each channel:
0, 6, 12, 18, 20,26, 32, 38dB
(2, 4, 8, 10, 20, 40, 80 times)
Crosstalk attenuation between channels, dB:
not less than 80 dB
Complete weighed signal-to-noise ratio at the linear output, dB:
not less than 90 dB
Dynamic frequency band of record-playback channel, dB:
not less than 90 dB (not less than 60 dB in the whole dynamic frequency band with allowance for the maximum amplifying for microphones
Harmonic factor in operating frequency band:
not more than 0,1%
Specialize control program in OS
WINDOWS VISTA/XP/SEVEN/2000,WINDOWS SERVER 2003/2008
Input circuit, symmetrical galvanically isolated universal inputs Connecting to the control channels
parallel
DC input resistance
not less than 1 МOhм
Operation threshold of parallel protection
270V ± 30V
Full level of the input signals
100-7000 мV (is changed with the help of the amplification coefficient of the input amplifier program )
There is hardware-controlled signal shaper “automatic number identification” (all the time parameters are program-controlled)

There is measurements of a linear voltage level
from 3 V up to 127 V at 0,5 V intervals, with the operation thresholds that are set up by the program.
Definition of the ringing signal existence by the voltage amplitude variable component
16000Hz from 200Hz up to 7600Гц
32000Hz from 200Hz up to 14200Гц
