Software Installation

            The cost of the license CSMO «PRIMETRACK» includes the cost of software CSMO «PRIMETRACK», HASP-key software protection, as well as the cost of services software installation CSMO «PRIMETRACK» server client by LLC "PrimeTechPlus" on the territory of "PrimeTechPlus." If necessary, increase the number of connected to the CSMO «PRIMETRACK» objects, the user pays the difference between the cost of the required license and already installed.

           Validity of the license CSMO «PRIMETRACK» - is not limited. The user provides the use of the software provided to him CSMO «PRIMETRACK» on the server configuration that matches the demands placed upon it.



Installation of terminal equipment

           Installing GPS-car equipment of the Customer can be made both by the specialists of "PrimeTechPlus" and by the specialists of the Customer. Terminals AMUR-GPS does not require special maintenance during operation. Placing the device in a car can be both open (explicit) and secretive. The apparatus should be firmly attached to the fixed parts of the vehicle. The device must not be attached to the heat or moving parts. When placing the device in the first place should pay attention to the reception of signals from satellites GPS. The most convenient place for the installation of the terminal is the space under the dashboard of the car, precluding unauthorized access to unauthorized persons. Before installing the terminal, it has to be inserted SIM-card is used with skim PIN-code. The antenna of the GPS receiver must necessarily have an open sky visibility. Above it should not be placed parts or components that prevent the passage of radio waves from satellites (the metal parts of a car, appliances and equipment, harnesses, individual conductors, etc.). Assumed its consolidation under the windshield of the car. To place the antenna receiver GSM imposed less stringent requirements, but with the condition for the free passage of radio waves network GSM. Power comes from the battery terminal of the vehicle. Power wires (red "+" Black "-") are connected to the wiring diagram of the car in the place where the presence of voltage does not depend on the position of the ignition key. In cars with switchable "weight", connect the power directly to the battery terminal is possible only if the optional galvanic isolator (optional). It should be borne in mind that a number of car models equipped with metallized glass, very poorly conducting radio. It is recommended that an external GPS antenna placement.

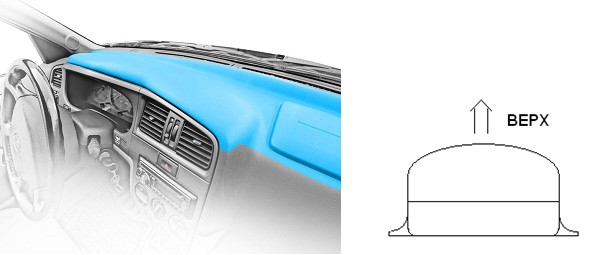

Zone preferred placement of antennas and antenna position -GPS:
