AMUR-PCI-E1-3

Программно-аппаратный комплекс «AMUR-PCI-E1-3»

Purpose:

Hardware-software complex «AMUR-PCI-E1-3 'based on the universal board« E1 », established in the PCI slot of the computer, allows simultaneous recording of voice data from 1, 2 or 3 threads PRI E1, with parallel connection to controlled lines. Each installed card provides registration and control at the same time up to 90 full-duplex channels, respectively protocols.



Order     Download



Structure

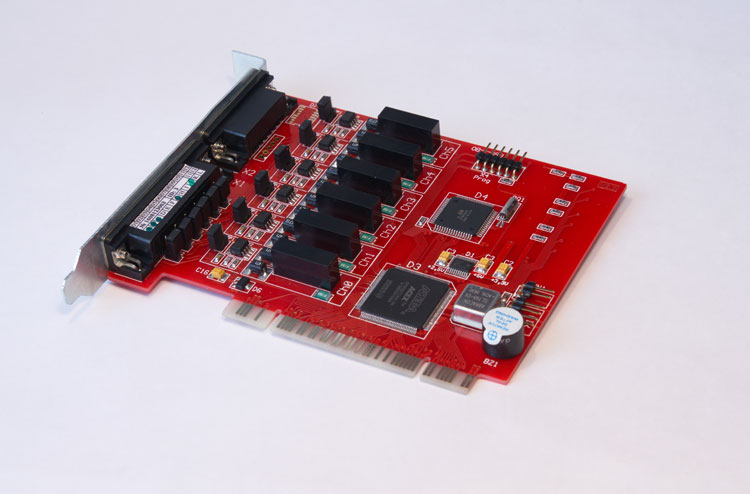

The structure of the recorder includes PCI printed-circuitboard «AMUR BRI» with software (CD-ROM).

Specifications:



.
Quantity of channels:
Up to 90 (30 cannels per one Е1 flow)
Recording density of one timeslot without compression
<= 57,6 MB/h
Type of signaling:
 OKC7, DSS1, V5.2, R2, R1.5, R1
Input resistance:

DC
not less than 100 MOhm
AC
not less than 2,5 кОhм
Complete galvanic isolation

Specialize control program

Indication of the communication session at each channel

Parallel connecting to the communication lines

Maximum length of cable that is connected to the flow
Е1 - 3 metres
Length of cable when one extender is connected
Е1 - 300 metres
