AMUR-PCI-BRI-6

Цифровое устройство многоканальной длительной звукозаписи цифрового протокола «AMUR-PCI-BRI-6»

Purpose:

Digital device multichannel audio digital protocol prolonged «AMUR-PCIBRI-6" - a software and hardware system, which provides a record to your hard drive, playback and analysis of analog audio information transmitted on digital telephone systems. The device is installed in the computer. On a board connected to 6 lines 2B-1D (1B-1D). Controls up to 12 telephone channels. Recording channels in stereo mode (separately for each subscriber.) This allows you to select each user separately for the purpose of identification, and produce automatic alignment signal levels near and distant subscribers.



Order     Download




Structure

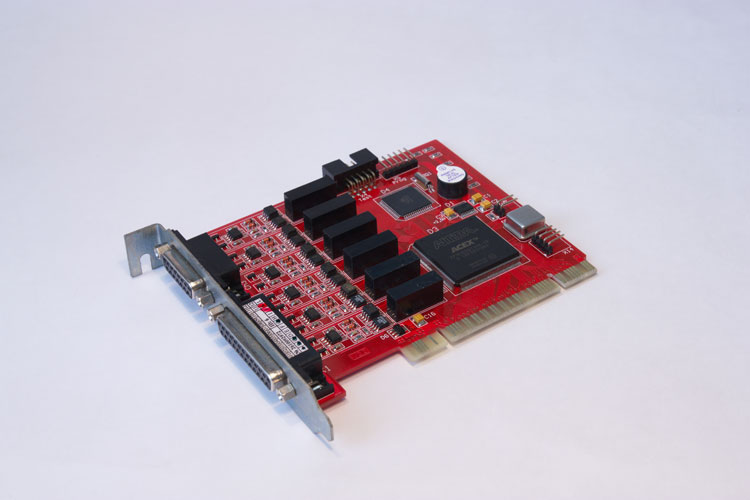

The structure of the recorder includes PCI printed-circuitboard «AMUR BRI» with software (CD-ROM).

Specifications:



It is connected to ISDN parallel digital two-wire telephone line

Quantity of the two-wire lines connected to the recorder
6
Quantity of channels of recording for ISDN 2B1D two-wire communication lines
12
Quantity of channels of recording for ISDN four-wire communication lines
6
Full galvanic isolation with a digital telephone line

Input resistance of telephone adapters (AC):
not less than 10 kOhm
Input resistance of telephone adapters (DC):
not less than 1 MOhm
There is a balance adjustment on each low-frequency analogue telephone channel
+
There is an alarm system about presence of synchronization with ISDN digital channel

There is a network configuration for integrating of several AMUR-ISDN complexes
+
There is an alarm system about communication session activation
+
There is a circuit changer of the communication session activation in incoming and outgoing directions and on the D-channel
+
