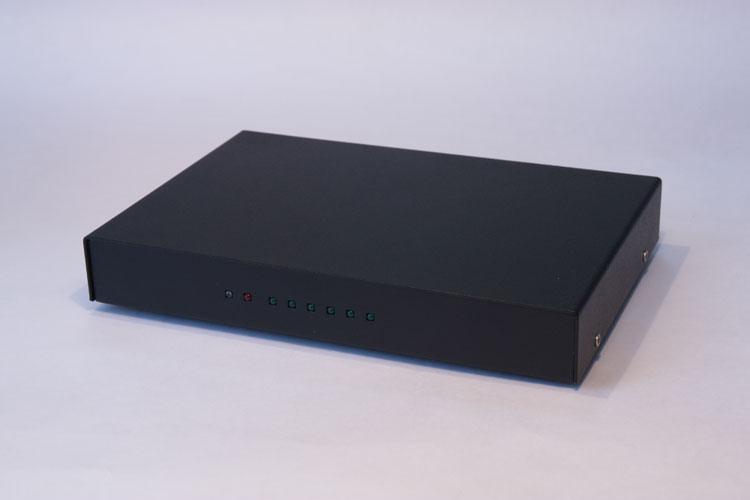

AMUR-NET-A-6

Hardware-software complex «AMUR-NET-A-6

Purpose:

Hardware-software complex «AMUR-NET-A-6" is designed for connection to analogue telephone lines with the aim of building, conversion and transmission of voice data to an external recording device via the Ethernet. Complex is able to record up to 6 channels.



Order     Download



Structure:



The structure of the recorder consists of external Ethernet device «AMUR-NET-A-6» with software (CD-ROM).

Specifications:



Quantity of maintained digital telephone channels
up to 6
Connection to the Ethernet network 10/100 Mbit with automatic determination of the connection speed

Indication of the network connection activation and speed

Connection to the digital telephone line
parallel
DC input resistance
not less than 1MOhм
AC input resistance
not less than 10кОhм
The length of the cable for connecting to the digital telephone line
up to 1000 м
Galvanic isolation between input, output and power supply

The maximal tested voltage between input and output:
1 кV
The maximal tested voltage between input and supply:
630V
Supply voltage of the equipment
direct, 9 V 0,5 А
Consumption current in the established mode
up to 300 мА
The maximal power consumption
3W
